Outdoor Digital Signage

Core Features & Technical Specifications

High-Brightness Display  |  All-Weather Protection  |  Smart Cloud Management  |  Interactive Data Analytics

1. Product Overview

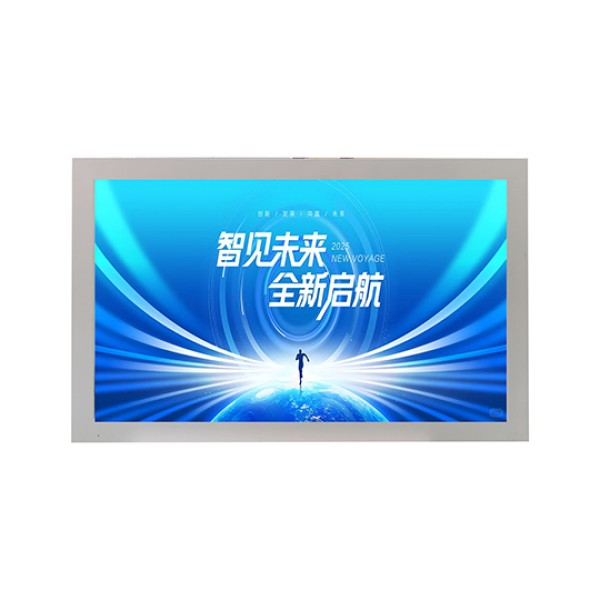

Outdoor digital signage is engineered for demanding outdoor environments, delivering sunlight-readable visuals, industrial-grade weather protection, cloud-based remote management, and interactive data capabilities. The product line centers on four core modules — high-brightness display, environmental protection, smart management, and interaction & data — ensuring reliable 24/7 operation across plazas, transit hubs, shopping districts, scenic areas, and communities.

2. Key Specifications at a Glance

3. Core Display Capability

3.1 High brightness & anti-glare

· Brightness: 1,500–2,500 cd/m² industrial high-brightness LCD panel, clearly readable in direct sunlight.

· Glass: AG (anti-glare) / AR (anti-reflection) tempered glass overlay eliminates reflections and boosts readability.

3.2 High resolution & format support

· Resolution: 1080P and 4K resolution options to suit different viewing distances and content needs.

· Playback: Landscape/portrait switch, split-screen & multi-window playback; supports images, video, PPT and other mainstream formats.

3.3 Smart dimming & local dimming backlight

· Auto dimming: Ambient light sensor automatically adjusts screen brightness — balancing visibility, energy savings, and panel lifespan.

· Local dimming: Local dimming divides the backlight into independently controlled zones; each zone switches or dims based on the corresponding image area, dramatically boosting contrast and reducing backlight heat by approximately 40%.

4. Outdoor Protection Performance

4.1 IP-rated enclosure

· Fan-cooled: IP55 (fan-cooled version) — protects against water jets and dust ingress.

· A/C: IP65 (A/C version) — full dust-tight and water-jet protection, resistant to heavy rain, sandstorms, and salt spray; optional anti-corrosion coating.

4.2 Wide-temperature stability

· Fan system: Axial-fan fully intelligent thermal control: -25 °C ~ +60 °C.

· A/C system: Full intelligent A/C thermal control: -30 °C ~ +65 °C, resists extreme thermal shock.

4.3 Physical & electrical protection

· Glass: 5 mm anti-explosion tempered glass — impact and bending strength 3–5× that of ordinary glass.

· Electrical: Surge arrester, RCD leakage protection, anti-electromagnetic interference; lightning and typhoon resistant.

· Enclosure: Galvanized steel + zinc-rich primer + outdoor-grade powder coating.

4.4 Testing & certification

· Verified: IP65/IP55 spray-water test + high/low-temperature cycling test + simulated solar radiation test.

5. Smart Management & Content Publishing

5.1 Remote cloud management

· Connectivity: 4G / 5G / Wi-Fi connectivity to cloud platform.

· Cloud ops: Remote content update, power on/off, multi-screen sync; scheduled and zone-based playback strategies.

5.2 Real-time monitoring & alerts

· Sensors: Monitors temperature, humidity, voltage, door access, water intrusion, and vibration.

· Alerts: Second-level alerts on anomaly; automatic power-off protection for critical faults.

5.3 Time control & self-diagnostics

· Time control: Built-in time switch supports group-based scheduling — each group can have its own on/off timetable.

· Self-check: Hardware self-scan on boot; remote diagnostics and maintenance reduce on-site service costs.

6. Interaction & Data Analytics

6.1 Touch interaction

· Touch: Infrared / capacitive 10-point touch, 8 ms response time; supports glove operation for cold climates.

6.2 AI sensing

· AI: Optional AI face recognition and foot-traffic counting for targeted content delivery and higher conversion.

6.3 Data analytics & reporting

· Analytics: Records play duration, play count, and interaction volume; generates reports to optimize content strategy.

6.4 Voice broadcast & expansion modules

· TTS: Built-in TTS (text-to-speech) for transit announcements, scenic-area guidance, and public alerts.

· Add-ons: NFC contactless ordering, EV charger status monitoring, AR navigation, emergency broadcast integration.

7. Product Features Summary

8. Deployment Scenarios & Mounting

8.1 Mounting options

· Vertical: Floor-standing

· Flat: Wall-mount

· Overhead: Ceiling-hung

· Double: Dual-screen (back-to-back)

8.2 Typical venues

· City plazas & shopping districts

· Bus shelters & transit hubs

· Scenic areas & tourist centers

· Community gates & residential zones

· Airports, train stations, highway service areas

8.3 Energy efficiency

· Design: High-brightness panel + smart dimming + intelligent thermal control = minimized long-term outdoor energy consumption.
