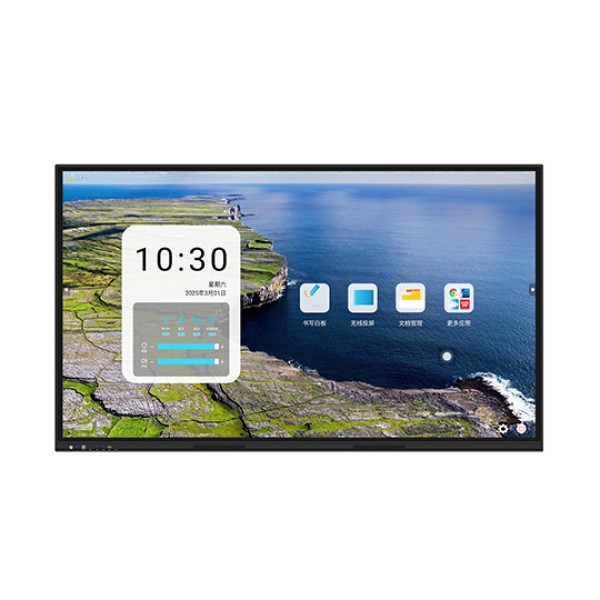

Meeting Touch All-in-One

Product Functions · Features · Color & Configuration

Android + Windows Dual OS | 20-Point IR Touch | Wireless Screen Mirroring | Smart Whiteboard

1. Product Overview

The Meeting Touch All-in-One integrates Android and Windows dual operating systems with infrared multi-touch, high-definition display, precision touch writing, wireless screen mirroring, and remote teaching capabilities. Equipped with professional interactive software, it covers touch interaction, multimedia teaching, and handwriting. The surface uses tempered glass with a high-transmittance treatment, delivering high strength, scratch resistance, safety, and reliability.

2. Product Functions

2.1 Core system capabilities

● Dual operating system: Android + Windows dual OS; single LAN cable provides internet for both systems (requires upgraded config). Four UI themes: Meeting, Education, Technology, Classic.

● Infrared multi-touch: 20-point touch writing; anti-blocking and anti-stain IR frame; 120 points/s cursor speed; ±2mm accuracy; 32767×32767 resolution.

2.2 Touch & handwriting

● Smart whiteboard: single/multi-point, pen size color change, image insert, page add, gesture eraser, zoom/pan, QR-code share.

● Any-channel annotation: write annotations on any video source screen with continuous, unlimited annotation.

● Android whiteboard: smart writing with natural stroke rendering that mimics real pen-and-paper feel.

● Freeze-screen gestures: zoom in/out on frozen screen content with touch gestures.

2.3 Wireless screen mirroring & sharing

● One-tap wireless screen mirroring: optional wireless dongle eliminates cable clutter; multi-screen interaction.

● Touch-back control: bidirectional touch control for seamless content sharing across multiple devices.

● QR-code meeting notes: scan QR code to save whiteboard content; effortless meeting record sharing.

2.4 Smart interactive experience

● Floating icon: draggable anywhere on screen; supports 8 user-customizable shortcut functions. Sidebar auto-hides after 5 seconds of inactivity.

● Auto signal detection: external input automatically switches to the corresponding port.

● Streamlined control panel: USB 3.0 ×3 full-channel pass-through; circular power button supports 3-in-1 (power off / PC off / energy saving).

● Customization: boot logo/animation/wallpapers customizable; 8-language quick switch; scheduled sleep & screensaver for energy saving.

● Network: wired LAN + 2.4G/5G Wi-Fi.

3. Product Features

3.1 Design & build

● Enclosure: Imported aluminum profile with brushed narrow bezel — elegant rounded edges. Full metal unibody: lightweight, high strength, rust-proof, anti-magnetic, anti-static.

● Glass panel: Original tempered glass, 98% transmittance. Optional anti-glare coating for eye comfort.

● Cooling: Abundant ventilation holes for circulating airflow — zero overheating risk.

3.2 Display performance

● Image quality: High brightness, contrast, and clarity; 16.7M colors faithfully reproduce every detail.

● Viewing angle: 178° ultra-wide viewing angle — complete color image from any angle, zero distortion.

● Response time: 5ms fast response eliminates motion trailing; automatic ghosting removal.

● Backlight: DLED direct-lit backlight, 50,000-hour lifespan.

3.3 Touch & hardware

● Touch type: IR or capacitive selectable; built-in integrated (non-external); driver-free plug-and-play.

● Writing media: Finger, stylus, or non-transparent object ≥5mm (multi-point ≥8mm).

● PC response: Auto-recognition ≤15ms.

● Touch lifespan: Theoretically unlimited touches.

3.4 Storage & audio

● Memory / storage: RAM upgradable to 64GB; SSD upgradable to 2TB — instant boot.

● Speakers: Built-in stereo surround speakers with premium audio capacitors and low-noise magic sound technology.

4. Color & Configuration Options

5. Touch Technology Specifications
